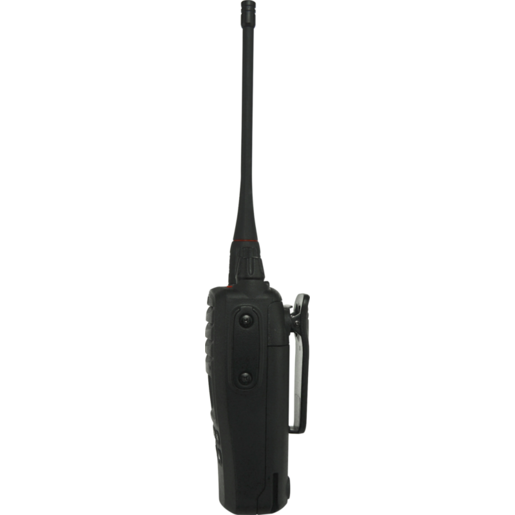

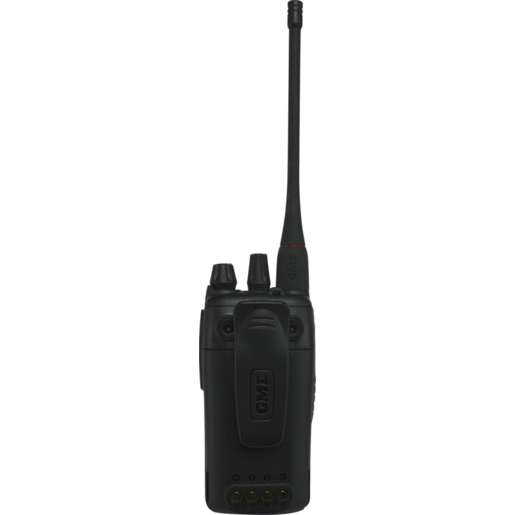

GME 5 Watt IP67 UHF CB Handheld Radio - TX6600S
SKU: ME30622
Part Number: TX6600S
The TX6600S features an IP67 rating, ensuring dust and waterproof performance in harsh conditions, making it ideal for demanding industries like agriculture and construction.
With switchable transmission power (5W, 1W, 0.1W) and multiple power-saving modes, users can choose the right setting for their communication needs.
Includes Scansuite digital scanning technology, rotary channel selection, and 119 programmable channels for flexible and efficient communication.
With switchable transmission power (5W, 1W, 0.1W) and multiple power-saving modes, users can choose the right setting for their communication needs.
Includes Scansuite digital scanning technology, rotary channel selection, and 119 programmable channels for flexible and efficient communication.
$469.99
Added to Your Cart
Product Availability by Store Location
Hours
Suitable For All
Delivery
The GME TX6600S is an Australian-made 5 Watt UHF CB Handheld Radio engineered for superior performance in demanding environments. With its robust IP67 ingress-protection rating, this radio is designed to withstand harsh conditions, making it ideal for various commercial applications, including agriculture, construction, and mining. The TX6600S sets a new benchmark for UHF CB Handheld Radios, ensuring reliable communication when it matters most.
Kit Includes:
- 5 Watt UHF CB Handheld Radio (TX6600S)
- 2600mAh Li-Ion Battery Pack (BP028)
- UHF Antenna 450-490MHz (AE4028)
- Desktop Charger (BCD022)
- AC Adaptor (PS005)
- Belt Clip (MB058)
Features:
- Made In Australia
- 5/ 1/ 0.1 Watt switchable transmission power
- Rugged Design, IP67 Ingress Protection
- ScanSuite™ - Digital Scanning Technology
- 119 User-programmable RX channels (403-520MHz)
- Multiple power saving modes
- Two priority channels / Triple watch

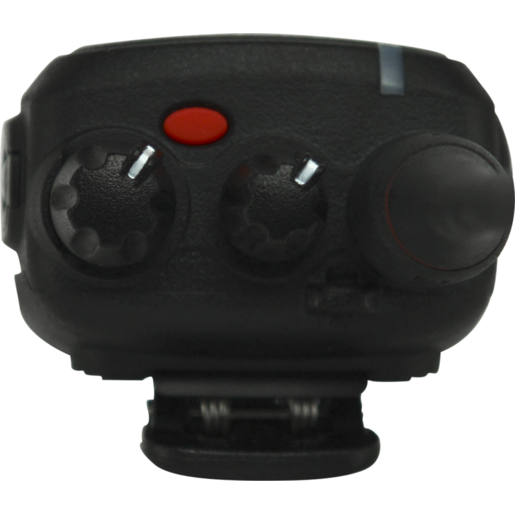

- Rotary channel selection with voice announcement
- MIL-STD 810G
Part number: TX6600S
| Compliance: | Compliant with AS/NZS 4365 for radio communications equipment in the UHF citizen band and personal radio service |
| Frequency Range: | |
| TX: | 476.425 MHz � 477.4125 MHz |
| RX: | 403 MHz � 520 MHz |
| Number of Channels: | 199 (80 CB plus 119 receive only) |
| Channel Spacing: | 12.5 kHz / 25 kHz |
| Scanning Speed: | 45 channels per second (22 ms per channel) |
| Antenna: | 50 Ohm, SMA male |
| Supply Voltage: | 7.4 V DC |
| Battery Type: | Li-Ion |
| Battery Capacity: | 2600 mAh |
| Operating Time: | |
| 5 W: | 18 h / 21 h / 22 h (power saving OFF / LO / HI) |
| 1 W: | 24 h / 33 h / 34 h (power saving OFF / LO / HI) |
| 100 mW: | 30 h / 49 h / 52 h (power saving OFF / LO / HI) |
| Transmitter: | |
| RF Output: | |
| High: | 5 W |
| Low: | 1 W |
| Ultra-Low: | 100 mW |
| Frequency Stability: | ± 2.5 PPM |
| Modulation: | FM |
| Spurious Emission: | < -34 dBm |
| Maximum Deviation: | � 2.5 kHz |
| Audio Harmonic Distortion: | 0.4% @ 1kHz / 1.5kHz Deviation |
| Receiver: | |
| Sensitivity: | -121 dBm for 12 dB SINAD |
| -120 dBm (450 MHz � 520 MHz) | |
| Adjacent Channel Selectivity: | |
| > 60 dB (Narrow Band) | |
| > 70 dB (Wide Band) | |
| Audio Output Power: | 1.5 W (8?) |
| Audio Signal to Noise Ratio: | 34 dB (SINAD) |
| Mechanical and Environmental: | |
| Dimensions: | 59 mm (W) x 42 mm (D) x 128 mm (H) (not including antenna) |
| Weight: | 337 grams (with battery and antenna) |
| Operating Temperature: | -20Deg C to +60 Deg C |
| Ingress Protection: | IP67 (dust tight and waterproof) |
| Accessory Connector: | GME 3.5 mm / 2.5 mm stereo jack |
