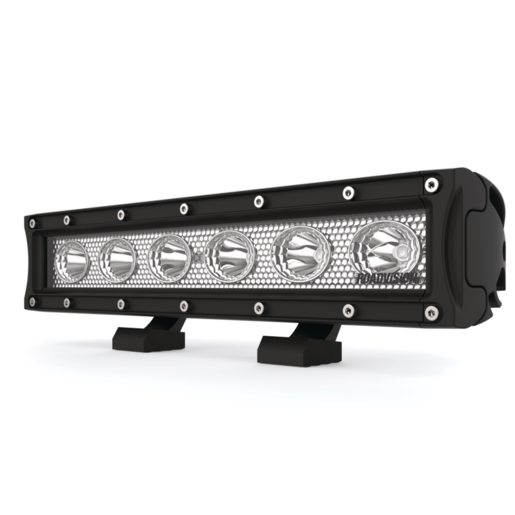

The Roadvision SRW Series LED bar lights are the ideal choice for applications where space is limited. Measuring only 56.5mm tall, the SRW Series pack a massive punch, producing up to 4860lm of instant light output and beam penetration reaching as far as 888 metres. Featuring a low-profile slide mounting system, the latest 3W Osram Hi-Lux LED’s and two beam patterns, the SRW Series by Roadvision provides optimal lighting for your journey.

RANGE FEATURES
SRW Series single row LED bar lamps produce up to 4860lm of instant light output
Available in 10”, 20” & 30” models
3W Osram Hi-Lux LED’s produce super white light close to daylight
Multi-volt 10-30V DC input
Super low current draw
50,000 hour LED lifespan with solid state technology
Light weight tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP67 rated
Simple 2 wire installation with Deutsch plug
Low profile slide mount system
Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

ACCESSORIES
Roadvison Bar Light Wiring Harness Kit RBWK
Roadvision LED Bar Light GEN2 HD Wiring Harness RBHDWK
Roadvision Airwire Remote Control Wiring Loom Kit RCWL
Roadvision Light Bar Dimmer Controller Next Gen RDIMG2

SPECIFICATIONS
Description SRW Series 10” Bar 6 LED
Beam Type Spot Beam
Lumens Light Output (Effective) 1620lm
Beam Distance 687m
Total Watts 18W
Light Source 6x3W Osram Hi-Lux LED’s
Voltage Input 10-30V DC
Current Draw Amps 1.13A @ 13.8V
Dimensions AxBxC 276x67x56.5mm
Bar Length 10” (276mm)
Wiring 2 Pin Deutsch Plug
Lux @ 10m 730 Lux
Meters @ 1 Lux 344m
Meters @ 0.5 Lux 687m
